Thermoform

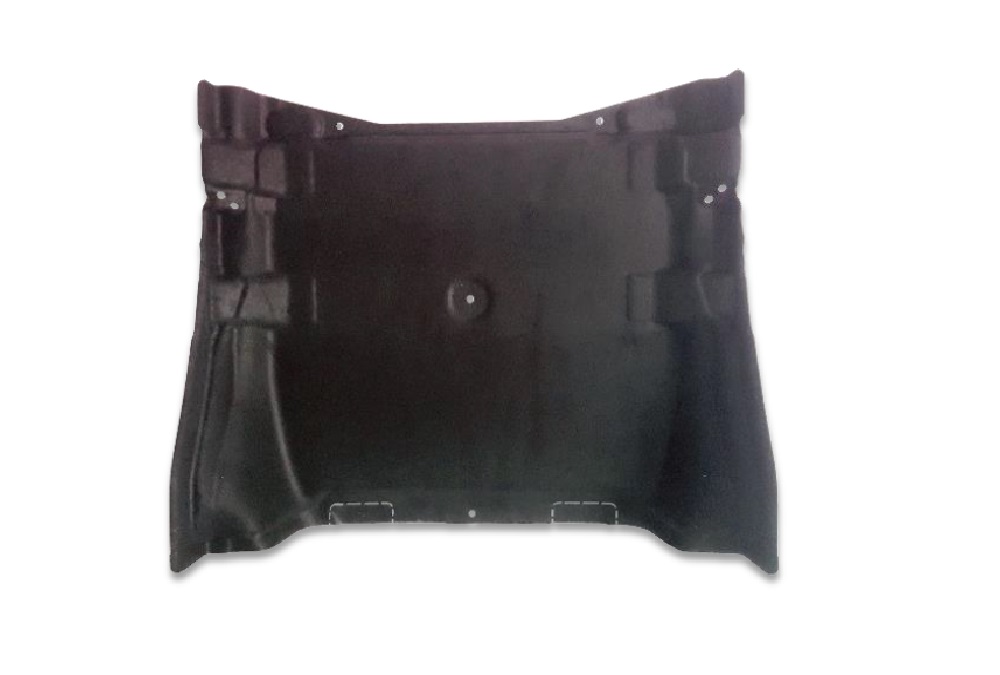

The most advanced, OEM spec compliant, water and/or oil repellent, multi layered, 3D formed, heat and sound insulation like the original melamine foam Basotect®, rock wool, phenolic felt, meltblown and moulded pur foams are Formplast’s new vision products.
Thermoform - Download
Thermoform - Download
| Material Function Matrix | |||||||
| Properties | Felt | Pu Foam | EPDM | Melamine | Adhesive | EPP | 3d Parts |
| Air Sealing |
|||||||
| Water Tightness |
|||||||
| Temperature Resistance |
|||||||
| Vibration Damping |
|||||||
| Rattle & Squek |
|||||||
| Silencing |
|||||||
| Gap Filling |
|||||||
| Shock Absorbing |
|||||||
| Bonding & Joining |
|||||||
| MATERIAL | TYPE | Colour | Weight (gr/m²) | Hickness (mm) | Tensile Strenght ( N ) | Fire Resistance ( <=100 mm) |
| Coton Felt | Thermovat Fenollü Epoksi Reçineli | Multi Color | Min. 600 Max. 2000 |
Min. 5 Max. 30 |
Min. 100 Max. 300 |
< 100mm/dak |
| Material | Type | Colour | Thickness (mm) | Density (kg/m³) | Surfaceweight (g/m²) | Temperaturestability (120°C for) | Flammability (mm/min) | Utilisation Temperature (°C) |
| Polyprophylene Felt | Meltblown | White | Min. 5 Max. 30 |
Min. 7 Max. 8 |
Min. 230 Max. 330 |
Min. 500 Max. 2000 |
< 100mm/dak | < 120 |
| Material | Type | Colour | Surfaceweight (g/m²) | Forming Temperature (°C) | Flammability Class | Utilisation temperature (°C) | Devitrification temperature (°C) |
| Glass Wool | Termal Ve Akustik Keçe | White | 400-1200 | 190-200 | A1 | 5-30 | 1000 |
| Material | Type | Colour | Density ( kg/m³ ) | Thermal Conductivity ≤ W/mK | Maksimum Çalışma Sıcaklığı (°C) |
Flammability Class | Utilisation temperature (°C) |
| Rock Wool | Thermal And Acoustic Felt | Brown | 1000/2000 | 50°C 0.043 100°C 0.055 150°C 0.07 200°C 0.09 |
550 | A1 | 5-30 |
| Material | Type | Colour | Colour | Density | Cellular Structure | Tensile Strength Crosscut Enine kPa | Elongation | Compression Resistance %50 Compression ( N ) |
Flammability 100mm/dak | Thermal Conductivity ( W/mK ) | Utilisation Temperature |
| Melamin Köpüğü | Eter | Light Gray - Antrasit | 9+2-1 | Min. 4 Max. 550 |
Açık Hücre | > 120 | > 20 | > 70 | < 100mm/dak | 0,035 | -40 / +200 |
| Material | Type | Colour | Density | Tensile Strength > 10 | Ultimate Elongation(%) | Permanent Deformation (%) | Swelling Test (%) | Ozon Dayanımı(pphm) | Hot Test | Cold Test |
| Rubber Tires | EPDM Rubber | Black | 1,83 | > 10 | > 300 | < 25 | Hydraulic +/-5 | Fracture Should Not Be Seen | + 5 / 0 | It Should Not Break When it Folded |
